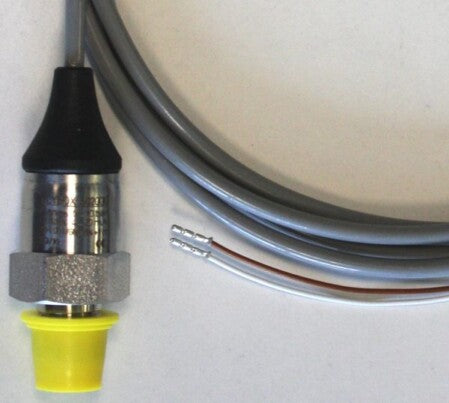

0-10 Bar Oil Pressure Sensor 4–20 mA
This item is currently out of stock but is available to backorder. Placing your order reserves your position in our next incoming shipment.
Flybox 0 to 10 Bar Oil Pressure Sensor 4–20 mA (Cod. 602000)
The Flybox Cod. 602000 is an aviation-grade solid-state oil pressure transducer engineered specifically for Rotax 912, 914, 912 iS, and 915 iS powerplants on Ultralight, Light Sport (LSA), and Experimental aircraft. Featuring a 0 to 10 bar (0 to 145 psi) range, 1/8" NPT male thread, stainless steel housing, and a noise-immune 4–20 mA current loop output, it delivers high-precision, vibration-proof telemetry directly to Flybox Omnia, Vigilus, EngiMaster, and Eclipse NG displays.
Operational Capabilities & Engine Protection
Solid-state pressure telemetry engineered for high-vibration aircraft cowlings:
Rotax 4–20 mA Standard
Engineered specifically to match the 4–20 mA telemetry requirements of modern Rotax 912/914/912iS/915iS engines, providing smooth, highly repeatable oil pressure data without signal degradation.
Current Loop Noise Immunity
Current-loop signalling eliminates the voltage drops and electrical interference that degrade traditional resistive senders, preserving signal fidelity across the firewall.
Stainless Steel Longevity
Machined from solid stainless steel with no internal mechanical wipers to wear out. Completely impervious to engine oil, fuel mist, hydraulic hammering, and continuous engine vibration.
Full Thermal Compensation
Features internal temperature compensation rated from -40°C to +135°C, maintaining 0.5% FS accuracy across cold sub-zero starts through to high-temperature continuous cruise climb.
Technical Specifications
| Manufacturer Part Number | Cod. 602000 |
| Product Function | Solid-State Aircraft Engine Oil Pressure Sensor |
| Measurement Range | 0 to 10 bar (0 to ~145 psi) |
| Output Signal Protocol | 4–20 mA current loop (2-wire interface) |
| Measurement Accuracy | 0.5% Full Scale (FS) |
| Power Supply Range | 8 V to 28 V DC |
| Thread Interface | 1/8" NPT male thread (10 mm thread length) |
| Hex Size & Body Dimensions | 17 mm hex • 48 mm body length (excluding cable boot) |
| Housing Material | Stainless steel construction |
| Cable Specification | 2.0 m (approx. 6.6 ft) pre-attached shielded aircraft cable |
| Thermal Compensation | Yes (internal active temperature compensation) |
| Operating Temperature Range | -40°C to +135°C (continuous engine bay rated) |
| Flight Instrument Compatibility | Flybox Omnia Oil P-T, Omnia Oil P-T-CT, Vigilus EIS, EngiMaster EIS, Eclipse NG |
| Engine Compatibility | Rotax (912 UL, 912 ULS, 914 Turbo, 912 iS, 915 iS), Jabiru, ULPower |
| Target Aircraft | Ultralights, Light Sport (LSA), Microlights, and Homebuilt Experimental aircraft |
