Vigilus EMS & Remote EIS Module
This item is currently out of stock but is available to backorder. Placing your order reserves your position in our next incoming shipment from the manufacturer. We will keep you notified with delivery updates when able.

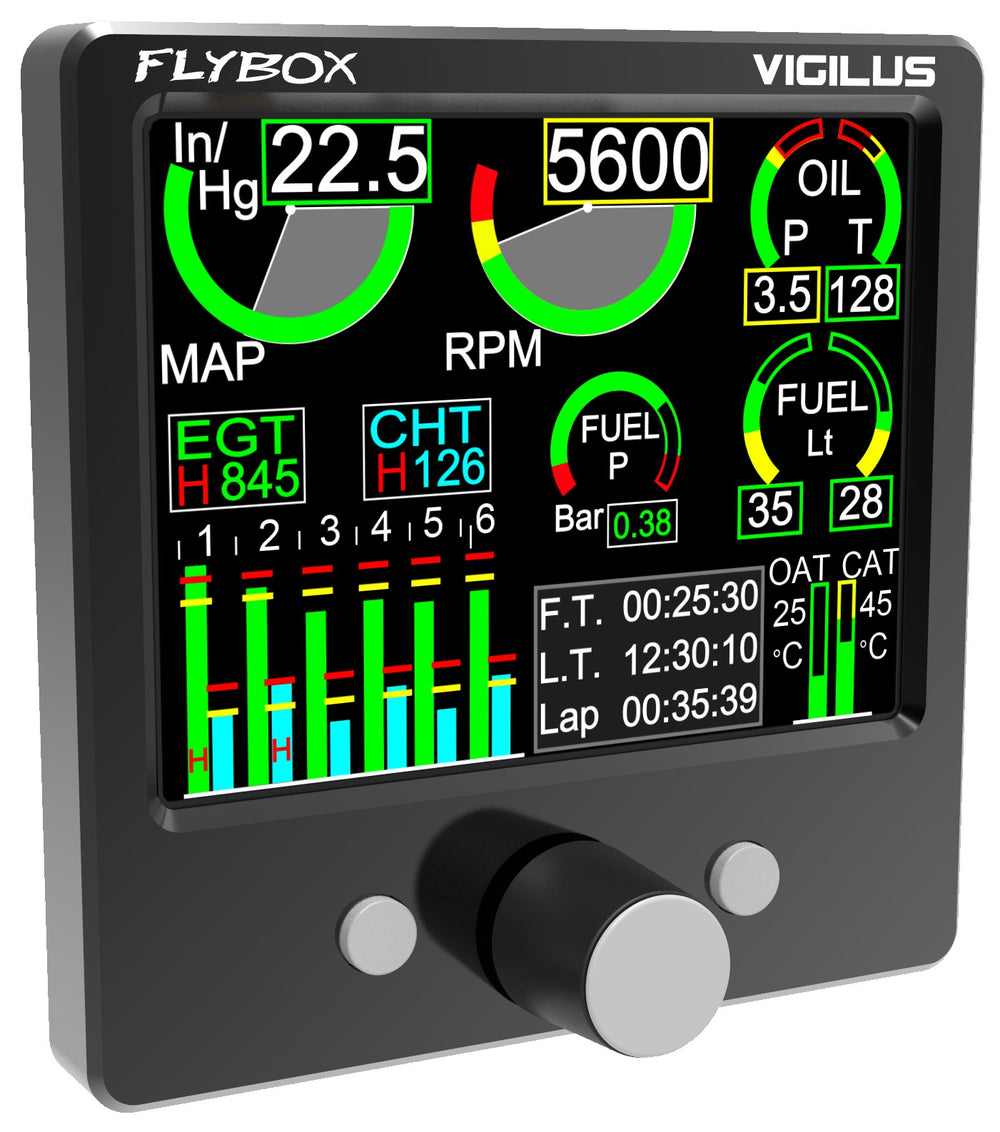

Flybox Vigilus Engine Information System (80 mm)
The Flybox Vigilus is a comprehensive Engine Information System (EIS) and fuel management computer designed for Ultralight, Light Sport (LSA), Experimental aircraft, and Helicopters. Fitting directly into a standard 80 mm (3⅛″) hole, it centralises all critical powerplant parameters onto a vibrant, sunlight-readable 3.5″ display—pairing a slim cockpit unit with a remote engine module for clean, simple firewall-forward installation.
Dedicated Flight & Powerplant Environments
Rotate the centre control knob to cycle through dedicated full-colour operational screens:
Primary Engine Telemetry
Continuous monitoring of RPM, MAP, Oil Pressure, Oil Temperature, Fuel Pressure, and up to 6× CHT and 6× EGT cylinders. A pre-takeoff status monitor displays red WARMUP until all temperatures and pressures are safe, switching to green READY.
Engine Temperature Diagnostics
Pressing F1 opens a schematic of your engine block, displaying individual CHT and EGT readings per cylinder alongside calculated temperature differentials (ΔEGT and ΔCHT) to identify fouling or balance issues instantly.
Flight Timers & Electrical Bus
Combines GPS-synced local/UTC time, an automatic flight timer triggered by engine RPM, an in-flight resettable lap timer, precision bus voltmeter, and an ammeter gauge for alternator charge/discharge monitoring.
Fuel Management & Computer
Monitors up to 3 physical tanks via capacitive or resistive senders. When combined with a fuel flow transducer and GPS, it calculates real-time flow rate, burned fuel, endurance, total range, reserve at destination, and tank-balance alerts.
Engine Lifecycle Analytics & 100–200 Hour Datalogger
- Zone-by-Zone Hourmeter: Logs total engine operating hours broken down into exact time spent running in green, yellow, and red operating zones.
- Peak RPM Tracking: Automatically records last flight duration, maximum peak RPM reached during the last flight, and lifetime maximum RPM ever sustained.
-
High-Rate Datalogging: Records every parameter once per second into internal memory. Review flights graphically on-screen with cursor scrolling or export to USB as a standard
.CSVfile for Excel. - Composite Video Support: Supports up to 3 composite video inputs via the optional Flybox USB Video Grabber (Cod 653000), allowing cockpit display of landing gear, tail, or cargo cameras.
Headset Spoken Audio Alerts
- Direct Intercom Audio: Verbal voice alerts broadcast over your headset for low oil pressure, overspeed, high CHT, and low fuel.
- Custom Repeat Cycles: Customise voice warning repetitions (1 to 5 times) and set audio output volume to match your intercom.
- Auto-Reset Functions: Visual and vocal warnings automatically clear once parameters return to safe operating ranges.
Remote Engine Module Architecture
- Clean Firewall Forwarding: Senders terminate at the compact remote module, running a single digital CAN-bus link to the dashboard.
- External Annunciator Outputs: Four programmable active-low outputs can drive external cockpit master warning lamps.
- Rotax 912iS Native Support: Reads dual ECU (A & B) parameters directly via CAN communication with zero analogue sensor taps.
Technical Specifications
| Panel Cutout Size | Standard 80 mm (3⅛″ aeronautical instrument cutout) |
| Cockpit Unit Dimensions | 86 mm × 86 mm × 30.3 mm (Weight: 185 g) |
| Remote Module Dimensions | 135 mm × 79 mm × 20 mm (Weight: 185 g) |
| Display Characteristics | 3.5″ Colour TFT LCD, 1,000 nits brightness (adjustable) |
| Operating Voltage Range | 10 V – 30 V DC (Display: max 200 mA; Remote Module: max 50 mA) |
| Operating Temperature Range | -20°C to +70°C |
| Thermocouple Inputs (EMS) | Up to 6× K-type EGT inputs & up to 6× J-type (or Rotax/PT1000) CHT inputs |
| Pneumatic & Fluid Inputs | MAP (1/8″ NPT), Oil Pressure, Fuel Pressure, 2× Oil Temp, Coolant Temp, CAT, OAT |
| Fuel Senders & Flow | 3× tank inputs (resistive 0–300 Ω or capacitive 0–5 V) + 2× Fuel Flow transducer inputs |
| Communication & GPS | 2× CAN-bus lines + RS-232 GPS input (NMEA-0183 $GPRMC & $GPRMB) |
| Audio & Alert Interfaces | Intercom Line-In / Line-Out (vocal warnings) + 4× programmable remote module outputs (300 mA max) |
| Data Storage & Expansion | 100–200 hour internal datalogger, USB flash export, optional composite video adapter |
