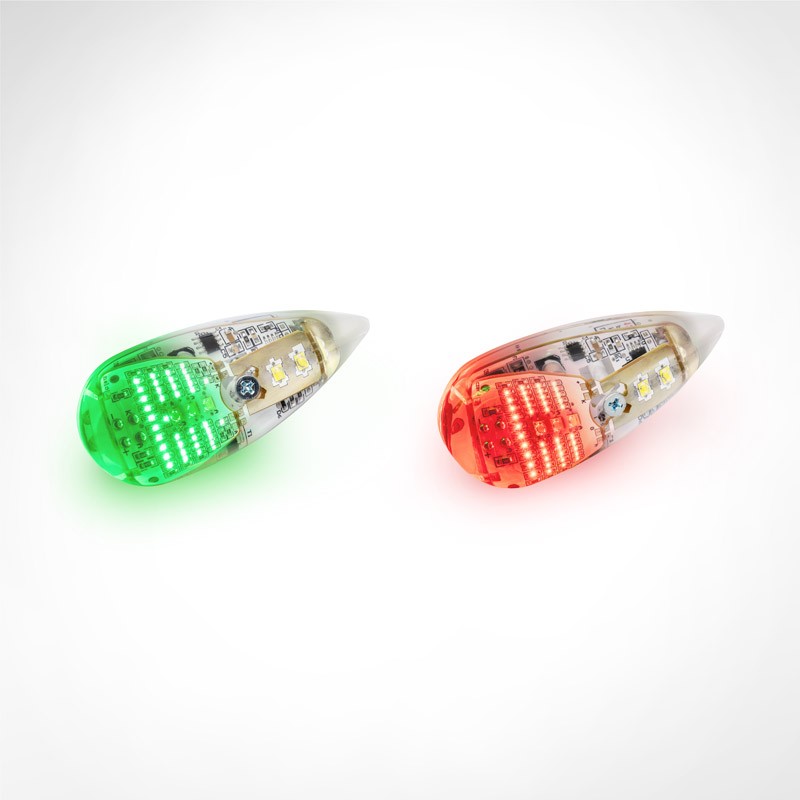

Navigator Ultra
This item is currently out of stock but is available to backorder. Placing your order reserves your position in our next incoming shipment from the manufacturer. We will keep you notified with delivery updates when able.
Ultra-Compact Navigation & Synchronised Strobe System
Engineered specifically for LSA, Ultralight, Kit, and Experimental aircraft. Combining vibrant port/starboard position lights with high-intensity synchronised white strobes, the Navigator Ultra ensures maximum visibility in all airspace conditions without unnecessary weight or wiring headaches.
Key Advantages
Integrated Controller
Synchronised strobe driver built directly inside the lamp capsule. Eliminates remote power packs, cuts installation time, and frees up precious sub-panel space.
Monolithic Protection
Solid UV-resistant epoxy encapsulation. Fully impervious to water, airframe vibration, and dust, with built-in reverse polarity protection against wiring mistakes.
CREE LED Output
Precision reflection optics paired with high-efficiency CREE LEDs produce an intense 8,000-lumen strobe burst—vastly exceeding minimum visibility requirements.
Model Comparison
| Capability | Ultra & Long Slim | Ultra 360 & Long Slim 360 |
|---|---|---|
| Navigation Light (Red / Green) | ✓ | ✓ |
| Rear Position Light (White) | — | ✓ |
| Synchronised Strobe (White) | ✓ | ✓ |
| Voltage Range | 12 V – 15 V | 12 V – 15 V |
| Integrated Synchronisation | ✓ | ✓ |
Technical Specifications
| Operating Voltage | 12 V – 15 V DC |
| Weight (Pair) | 115 g |
| Operating Temperature Range | -35°C to +60°C |
| Navigation Current Draw | 0.4 A (pair) / 5.3 W total |
| Strobe Current Draw (Peak) | 2.7 A per lamp (40 W peak) |
| Navigation Beam Angle | 110° |
| Luminosity Output | 450 lm (nav/lamp) • 8,000 lm (strobe pair) |
| Encapsulation | Monolith UV-resistant epoxy resin |
| Circuit Protection | Built-in reverse polarity protection |
| Manufacturer Warranty | 2 Years |
