Long Slim
This item is currently out of stock but is available to backorder. Placing your order reserves your position in our next incoming shipment from the manufacturer. We will keep you notified with delivery updates when able.

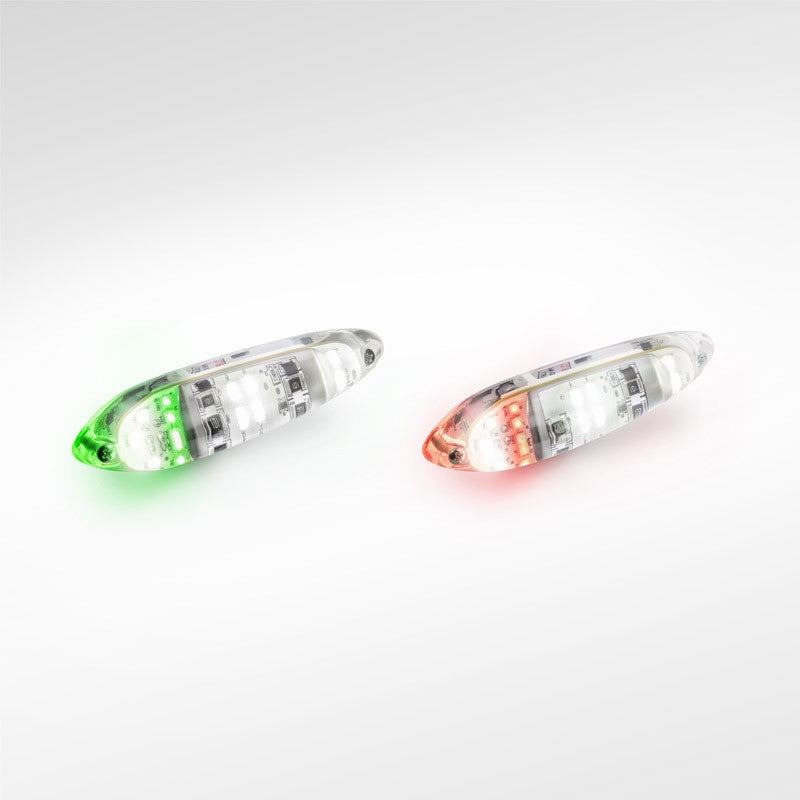

AvioLights Long Slim Low-Profile Wingtip Nav & Strobe System
The AvioLights Long Slim is a matched pair of aerodynamic wingtip lamps combining 110° navigation lights (red port, green starboard) with a high-intensity 8,000-lumen synchronised white strobe in a 22 mm ultra-slim casing. Designed for Ultralights, Microlights, Kitplanes, and Gyrocopters, it features an integrated internal strobe controller in each module—completely eliminating external driver boxes and heavy high-voltage looms.
Engineering & Operational Features
Advanced solid-state illumination designed for performance and simple installation:
No External Controller Box
Every lamp houses its own solid-state strobe driver circuitry. Mounts directly to wingtips without finding cabin space for remote strobe boxes or routing heavy, noise-generating high-voltage lines.
Monolith Epoxy Casting
Cast as a solid, UV-resistant epoxy block with no hollow air pockets, O-rings, or separate lenses. Completely impervious to water immersion, engine vibration, temperature shock, and dust.
Synchronised Strobe Sequence
Connecting the white synchronisation lead between the left and right modules ensures both strobes fire simultaneously at 100 flashes per minute for maximum visual anti-collision conspicuity.
Ultra-Low Power Demand
Navigation mode consumes only 0.4 A (4.5 W) across both lamps combined. Minimises electrical load on lightweight aircraft alternators while maintaining crisp 500-lumen sector lighting.
Wiring & Lead Color Code
Each module comes pre-wired with 4 colour-coded leads requiring standard 0.5 mm² (20–22 AWG) aircraft wiring:
- Red Wire (+ACL / Strobe): Connects to your cockpit Strobe switch via a 5 A fuse.
- Orange Wire (+POS / Navigation): Connects to your Navigation Light switch via a 0.5 A fuse.
- Black Wire (GRD / Ground): Connects to the aircraft main grounding bus.
- White Wire (SYNCHRO): Interconnects directly between port and starboard lamps for simultaneous strobe firing.
Technical Specifications
| Package Configuration | Matched pair (Left Wingtip Red / Right Wingtip Green) |
| Operating Voltage Range | 12 V – 15 V DC |
| Navigation Forward Angle | 110° forward sector coverage |
| Luminosity Output | 500 lumens nav (per lamp) • 8,000 lumens strobe (pair) |
| Strobe Flash Frequency | 100 flashes / min (built-in controller with synchronization line) |
| Navigation Current & Power | 0.4 A • 4.5 W (both lamps combined) |
| Strobe Current & Power | 2.7 A peak • 40 W peak (per lamp) |
| Module Dimensions | 108 mm (L) × 27.5 mm (W) × 22.0 mm (H) |
| Mounting Hole Spacing | 90.0 mm between 3.3 mm screw holes (6.0 mm wire passthrough) |
| Total Weight | 115 g (combined weight of both modules) |
| Encapsulation & Environmental | UV-resistant epoxy monolith • Water, vibration & reverse polarity protected |
| Operating Temperature Range | -35°C to +60°C |
| Warranty | 2-Year Manufacturer Warranty |
