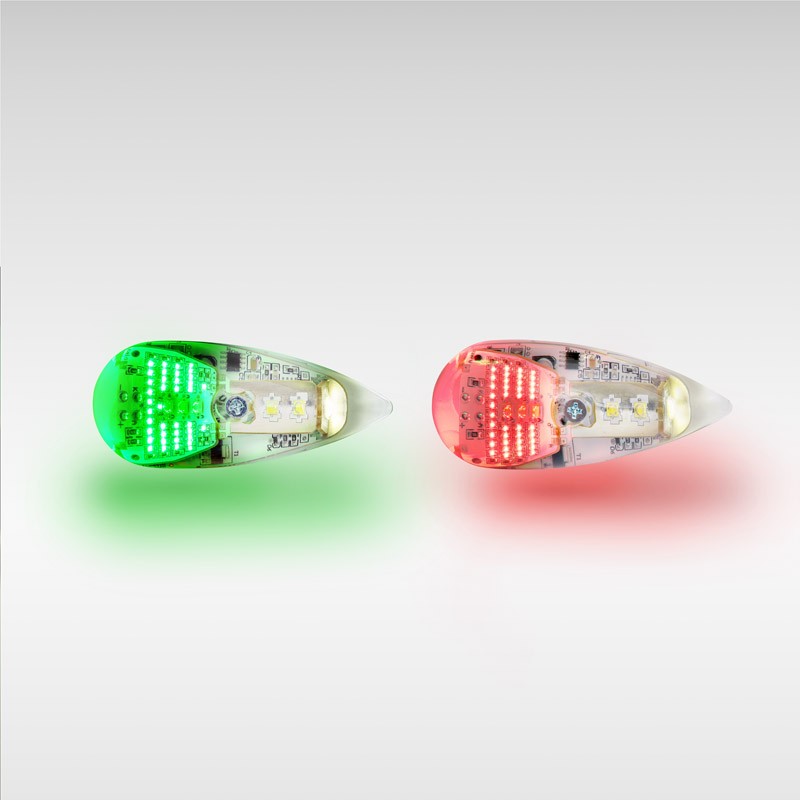

Navigator Ultra 360
This item is currently out of stock but is available to backorder. Placing your order reserves your position in our next incoming shipment from the manufacturer. We will keep you notified with delivery updates when able.
All-In-One Navigation, Rear Position & Synchronised Strobe System
Designed specifically for LSA, Ultralight, Kit, and Experimental aircraft, the Navigator Ultra 360 is a complete lighting solution covering the entire required light spectrum. Integrating port/starboard navigation, rear white position lights, and high-intensity synchronised strobes into a single compact housing, it ensures complete 360-degree visibility without adding drag or structural weight.
Key Advantages
Integrated Strobe Controller
The synchronised strobe controller is built directly into each lamp capsule. Installation is faster, wiring is simplified, and you do not need dedicated fuselage space for external power drivers.
Multi Protection
Solid UV-resistant epoxy monolith encapsulation ensures complete resistance to water and airframe vibration. Dust cannot enter the unit, and onboard electronics are protected against accidental reverse polarity.
High Brightness CREE Output
State-of-the-art optics paired with a proprietary reflection system and genuine CREE LEDs deliver beam performance and visibility far exceeding regulatory minimum requirements.
Model Comparison
Compare the key differences between the standard Navigator Ultra and the full 360-degree position model:
| Capability | Navigator Ultra | Navigator Ultra 360 |
|---|---|---|
| Navigation Light (Red / Green) | ✓ | ✓ |
| Rear Position Light (White) | — | ✓ |
| Synchronised Strobe (White) | ✓ | ✓ |
| Operating Voltage | 12 V – 15 V | 12 V – 15 V |
| Integrated Synchronisation | ✓ | ✓ |
Technical Specifications
| Lighting Functions | Navigation (Red/Green) + Rear Position (White) + Synchronised Strobe (White) |
| Operating Voltage | 12 V – 15 V DC |
| Weight (Set of 2 Lamps) | 170 g |
| Operating Temperature Range | -35°C to +60°C |
| Current Draw – Navigation | 0.5 A (pair) |
| Current Draw – Strobe (Peak) | 3.2 A (pair peak) |
| Input Power – Navigation | 4.5 W (pair) |
| Input Power – Strobe (Peak) | 45 W (pair peak) |
| Navigation Light Angle | 110° |
| Luminosity Output | 450 lm (nav/lamp) • 2,000 lm (strobe/lamp) |
| Encapsulation & Sealing | Monolith of UV-resistant epoxy resin (dust, water & vibration proof) |
| Strobe Control Unit | Built inside lamp capsule (synchronised) |
| Circuit Protection | Reverse polarity protected |
| Manufacturer Warranty | 2 Years |
