Omnia ASI & OAT
This item is currently out of stock but is available to backorder. Placing your order reserves your position in our next incoming shipment from the manufacturer. We will keep you notified with delivery updates when able.

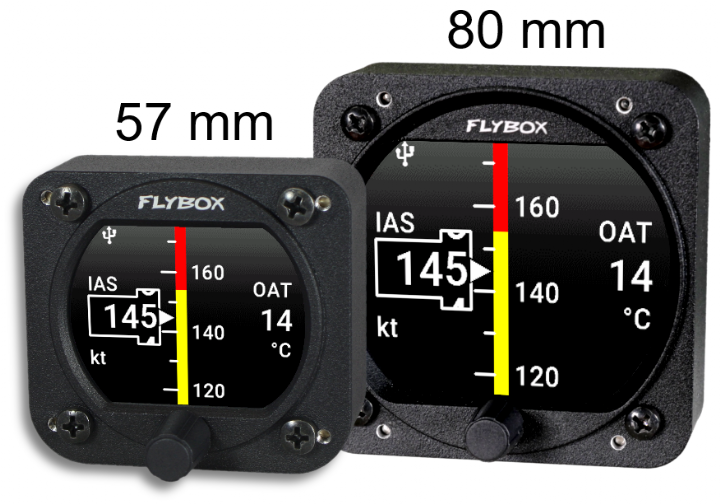

Flybox Omnia ASI-OAT (57 mm & 80 mm)
The Flybox Omnia ASI-OAT is a high-accuracy digital airspeed indicator and atmospheric computer engineered for Ultralight, Light Sport (LSA), and Experimental aircraft. Combining Indicated Airspeed (IAS), calculated True Airspeed (TAS), and Outside Air Temperature (OAT) on a high-visibility colour graphic display, it delivers immediate airspeed situational awareness with customisable V-speed range arcs. Available in standard 57 mm (2-1/4″) and 80 mm (3-1/8″) round panel cutouts.
Choosing Your Instrument Size
Select the standard round aviation cutout diameter that matches your panel arrangement:
Omnia ASI-OAT 57 mm (2-1/4″)
Tailored for tight instrument layouts, tandem cockpits, glider panels, or secondary co-pilot stations. Delivers complete graphical airspeed dials, TAS calculations, and atmospheric readouts in a compact 57 mm footprint.
Omnia ASI-OAT 80 mm (3-1/8″)
The direct drop-in replacement for traditional 3-1/8″ mechanical airspeed dials. Features an expanded circular scale, larger high-contrast digital fonts, and enhanced peripheral readability for primary pilot flight scans.
Operational Capabilities & Airspeed Safety
Complete airspeed and ambient environmental tracking in a single glass face:
True Airspeed Computation
By combining pitot-static dynamic pressure with live Outside Air Temperature (OAT) from the external probe, the internal flight computer continuously calculates and displays accurate True Airspeed (TAS).
Custom V-Speed Markings
Easily program your aircraft's precise operating envelopes: White arc (Vfe), Green arc (normal flight), Yellow caution band (Vno to Vne), and Red limit line, matching your Pilot Operating Handbook (POH).
Aural & Visual Over-Speed Alarms
Equipped with an audio line-out for clear spoken voice alerts directly into your headset intercom when approaching Vne, paired with two open-collector outputs to drive external cockpit warning lights.
Automatic Peak Flight Logging
Includes internal non-volatile memory that logs maximum indicated airspeed and flight hours per trip, allowing convenient post-flight inspection and accurate airframe maintenance record-keeping.
Technical Specifications
| Panel Cutout Standards | Standard 57 mm (2-1/4″) or 80 mm (3-1/8″) round aviation hole |
| Operating Voltage Range | 10 V – 30 V DC (Typical current draw ~120 mA @ 12 V / ~1.5 W) |
| Airspeed Measuring Range | Configurable full scale up to 450 km/h, 240 knots, or 280 mph |
| Pneumatic Interfaces | 2x Rear pneumatic ports: Pitot (Dynamic) & Static (Ambient) |
| OAT Measurement Range | -40°C to +80°C (-40°F to +176°F) via external probe |
| Display Characteristics | Sunlight-readable graphic colour TFT LCD with adjustable dimming |
| Aural Warning System | Integrated audio line-out for connection to aircraft intercom system |
| External Alarm Outputs | 2x Programmable NPN open-collector outputs (max 500 mA each) |
| Bus Communication | CAN-bus 2.0B interface for Flybox network telemetry integration |
| Operating Temperature Range | -20°C to +70°C (non-condensing humidity) |
