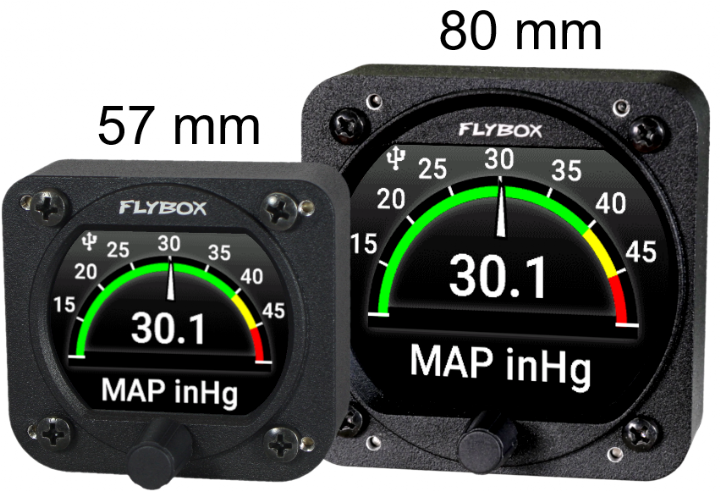

Omnia MAP

Omnia57 MAP (57 mm / 2-1/4″)

The compact choice for space-constrained panels, centre pedestals, or secondary consoles. Features a 68.5 mm × 62.0 mm outer bezel, weighing only 140 g with a low 60 mA power draw. Fits standard 57 mm cutouts (57.5 mm recommended) with up to 10 mm internal screw depth.

Omnia80 MAP (80 mm / 3-1/8″)

The direct drop-in replacement for traditional 3-1/8″ round mechanical manifold pressure gauges. Features an 84.0 mm × 84.0 mm square bezel and expanded 3.5″ display area for high-focus scanning. Fits standard 80 mm cutouts (80.5 mm recommended) using M4×6mm screws (maximum 3.5 mm internal screw thread depth).

Internal solid-state pressure transducer eliminates the sticking needles, mechanical gear wear, and vibration lag common to legacy mechanical aneroid capsule gauges, delivering instantaneous and stable readings up to 60 inHg.

Configure continuous green, cautionary yellow, and maximum red limit bands directly via the rotary encoder, perfectly tailoring the visual gauge face to your specific engine manufacturer's operating envelope.

Includes integrated setup profiles for Rotax 912, 914, 912iS, 915iS, Lycoming, and Continental powerplants, along with an adjustable digital filter to eliminate manifold pressure pulsation without lagging throttle response.

Features an NPN open-collector output for external warning lights or intercom audio tones, paired with dual CAN-bus interfaces for cluster networking with other Omnia instruments.
