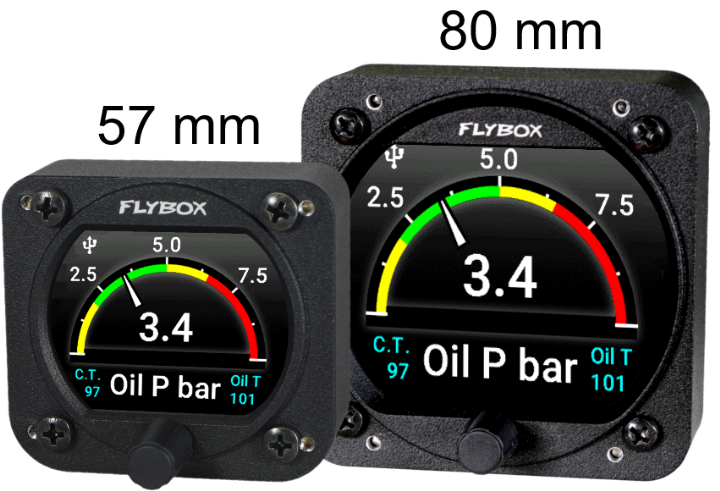

Omnia Oil Pressure, Temp & Coolant Temp

Omnia57 Oil P-T-CT (57 mm / 2-1/4″)

The compact choice for space-constrained panels, centre pedestals, or secondary consoles. Features a 68.5 mm × 62.0 mm outer bezel, weighing only 140 g with a low 60 mA power draw. Fits standard 57 mm cutouts (57.5 mm recommended) with up to 10 mm internal screw depth.

Omnia80 Oil P-T-CT (80 mm / 3-1/8″)

The direct drop-in replacement for traditional 3-1/8″ round mechanical engine instruments. Features an 84.0 mm × 84.0 mm square bezel and expanded 3.5″ display area for high-focus scanning. Fits standard 80 mm cutouts (80.5 mm recommended) using M4×6mm screws (maximum 3.5 mm internal screw thread depth).

Simultaneously monitors engine oil pressure, oil temperature, and coolant temperature. Displays the primary selected gauge on a large dial with continuous digital readouts of the remaining two parameters in the lower display corners.

Includes intelligent "Limit Mode" which automatically switches the main dial to show whichever fluid measurement is running closest to its high limit, instantly drawing pilot attention to rising temperatures or falling oil pressure.

Features pre-configured digital profiles for modern electronic engines. Connects directly to the ECU CAN bus on Rotax 912iS and 915iS powerplants, extracting high-precision fluid telemetry without installing analogue senders.

Features independent high/low visual warning banners and an NPN open-collector alarm output. Includes programmable activation delay timers (0 to 10 seconds) to eliminate nuisance alarms during transient cold starts.
