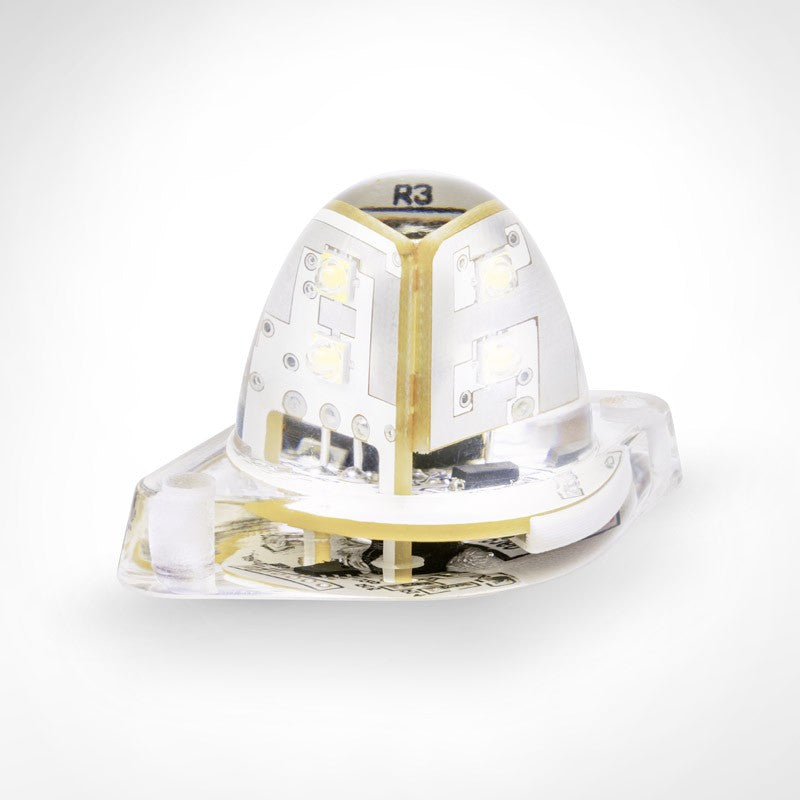

Tail Star Strobe
This item is currently out of stock but is available to backorder. Placing your order reserves your position in our next incoming shipment from the manufacturer. We will keep you notified with delivery updates when able.
Aft White Position & Synchronised Anti-Collision Strobe System
Designed specifically for LSA, Ultralight, Kit, and Experimental aircraft, the Tail Star Series delivers brilliant rear-sector conspicuity in an ultra-lightweight, streamlined package. Available in either vertical (360°) or horizontal (140°) mounting geometries, each unit functions as a continuous position light, a high-intensity strobe, or both simultaneously—with built-in master synchronisation to interconnect with your wider AvioLights installation.
Key Advantages
Integrated Strobe Controller
The synchronized flash driver is built directly into the lamp capsule. Installation is quick and simple, with no remote power modules or high-voltage lines running through the empennage.
Multi Protection
Monolithic encapsulation in solid UV-resistant epoxy resin renders the lamp totally impervious to moisture, pressure washing, vibration, and dust, with integrated reverse polarity protection.
CREE Optical Intensity
A specialised optical reflection system paired with genuine CREE LEDs produces an intense 2,000-lumen strobe burst alongside a clean 450-lumen constant position beam.
Mounting & Model Selection
Select the model configuration suited to your aircraft tail empennage:
| Feature | Tail Star 360 | Tail Star 140 |
|---|---|---|
| Mounting Plane | Vertical (Rudder / Fin) | Horizontal (Fuselage Fairing) |
| Coverage Angle | 360° Omnidirectional | 140° Rear Sector |
| Flash Rate | 100 flashes / min | 120 flashes / min |
| Weight | 40 g | 50 g |
| Position Light Power | 6.5 W (0.45 A) | 5.0 W (40–60 mA) |
| Strobe Peak Power | 30 W peak (2.0 A) | 35 W peak (2.5 A) |
Technical Specifications (12 V – 15 V)
| Parameter | Tail Star 360 | Tail Star 140 |
|---|---|---|
| Light Modes | Position only, Strobe only, or Position + Strobe simultaneously | |
| Voltage Range | 11.8 V – 14.8 V DC | |
| Luminosity Output | 450 lm (Position) • 2,000 lm (Strobe peak) | |
| Flash Frequency | 100 flashes / min | 120 flashes / min |
| Current Draw – Position | 0.45 A | 40 mA / 60 mA |
| Current Draw – Strobe | 2.0 A in peak | 2.5 A in peak |
| Input Power – Position | 6.5 W | 5.0 W |
| Input Power – Strobe | 30 W in peak | 35 W in peak |
| Weight | 40 g | 50 g |
| Operating Temperature Range | -35°C to +60°C | |
| Wiring Requirement | 0.5 mm² cable | |
| Encapsulation & Sealing | Monolith of UV-resistant epoxy resin (water, dust & vibration proof) | |
| Strobe Synchronisation | Yes (interconnects with AvioLights range) | |
| Circuit Protection | Reverse polarity protected | |
| Manufacturer Warranty | 2 Years | |
