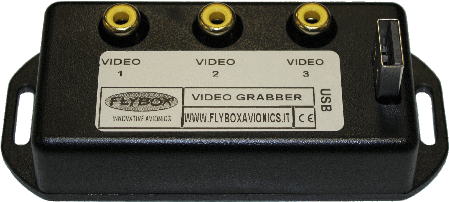

Vigilus Video Grabber (Cod. 653000)
This item is currently out of stock but is available to backorder. Placing your order reserves your position in our next incoming shipment from the manufacturer. We will keep you notified with delivery updates when able.
Flybox Vigilus Video Grabber (Cod. 653000)
The Flybox Vigilus Video Grabber (Cod. 653000) expands your Flybox Vigilus EIS into a live multi-camera cockpit monitor. Simply plug the unit into the Vigilus USB harness and connect 1 to 3 PAL composite cameras via gold-plated RCA sockets to view real-time landing gear, wing, or passenger cabin images directly on the crisp 3.5-inch flight screen.
Features & Operational Capabilities
Enhance your cockpit situational awareness without adding extra panel weight or clutter:
3-Camera Input Capacity
Supports up to 3 composite PAL cameras simultaneously. Switch effortlessly between landing gear cameras, blind spot monitors, or tail cameras directly on the 3.5-inch Vigilus display.
Zero External Power Wires
Draws operating power directly from the 5 V DC USB socket of the Vigilus flight computer. Consumes just 60 mA, completely eliminating the need to run extra DC circuit breakers or power taps.
Long Cable Runs (Up to 5 m)
Engineered for airframe distribution with support for 75-ohm coaxial RCA video cables up to 5 metres in length, allowing easy routing to distant wingtip pods or aft fuselage locations.
Ultra-Lightweight 43 g
Weighing only 43 grams with integrated sub-panel mounting flanges, it mounts discreetly behind the dashboard using two M3/M4 screws, preserving valuable payload margin.
Technical Specifications
| Manufacturer Part Number | Cod. 653000 |
| Flight Instrument Compatibility | Flybox Vigilus EIS (Cod. 651000) |
| Supported Video Standard | PAL (Phase Alternating Line) composite analogue video only |
| Video Input Sockets | 3x Gold-plated RCA composite female sockets (Video 1, Video 2, Video 3) |
| Host Interface Port | USB 2.0 Type-A connector (plugs into Vigilus harness) |
| Operating Voltage & Current | 5 V DC (Powered via USB connection) • Supply current: 60 mA |
| Maximum Video Cable Run | Up to 5 metres per camera line (using 75-ohm RCA cable) |
| Dimensions & Weight | 96.3 mm (L) × 40.0 mm (W) × 30.2 mm (H) • Weight: 43 g |
| Mounting Hole Spacing | 80.0 mm spacing between flange mounting holes |
| Operating Temperature Range | -20°C to +70°C (non-condensing humidity) |
| Target Aircraft | Ultralights, Light Sport (LSA), Microlights, and Experimental aircraft |
