Flybox Avionics ⏳ Available on Backorder

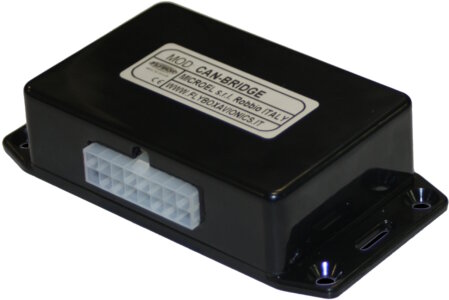

Dual-Channel CAN-Bus Bridge for Rotax iS Engines

Part No / SKU: 601080
£74.00 inc. VAT
📦 Backorder Item

This item is currently out of stock but is available to backorder. Placing your order reserves your position in our next incoming shipment.

Genuine Flybox Avionics Interface

Flybox Dual-Channel CAN Bridge for Rotax iS Engines (Cod. 601080)

The Flybox CAN-BRIDGE (Cod. 601080) is an active digital data bridge designed specifically for Rotax 912iS, 915iS, and 916iS fuel-injected engines on Ultralight, Light Sport (LSA), and Experimental aircraft. By reading both Lane A and Lane B CAN buses while keeping them physically isolated, it sends consolidated engine telemetry safely to single-channel cockpit displays—fully respecting official Rotax installation mandates and eliminating single-point bus failure risks.

Part Number Cod. 601080
Engine Target Rotax 912iS / 915iS / 916iS
Bus Architecture 2 In (Isolated) → 1 Out
Operating Bus 10 V – 30 V DC

Operational Capabilities & System Safety

Active bus management engineered to preserve engine data redundancy:

01

True Physical Isolation

Maintains independent physical separation between Rotax ECU Lane A and Lane B. Completely prevents a short circuit or transmission lock-up on one CAN channel from corrupting the entire engine instrumentation system.

02

Single-Channel Conversion

Aggregates and formats dual ECU data into a unified CAN3 output stream, allowing modern single-input EIS displays (such as Flybox Omnia, Vigilus, EngiMaster, and third-party panels) to receive full engine telemetry.

03

Internal 120Ω Terminations

Features integrated 120-ohm bus termination resistors for CAN1, CAN2, and CAN3. Terminations are engaged simply by bridging designated pins on the 16-pin connector—no loose resistors to solder.

04

Dedicated RPM Pulse Out

Outputs a robust 30 V / 1 ms tachometer pulse derived directly from the digital ECU telemetry, ideal for operating constant-speed propeller governors or secondary mechanical/analogue round gauges.


Technical Specifications

Manufacturer Part Number Cod. 601080 (MOD. CAN-BRIDGE)
Product Function Dual-Channel CAN-Bus Isolator & Aggregator for Rotax iS Engines
Engine Compatibility Rotax 912iS, 912iSC, 915iS, 915iSC, 916iS
Operating Voltage Range 10 V to 30 V DC (Compatible with 12V and 24V aircraft electrical systems)
Supply Current 30 mA typical
Input Channels 2x Independent CAN Inputs (CAN1 from ECU A • CAN2 from ECU B)
Output Channels 1x Unified CAN Output (CAN3) • 1x Tachometer Pulse Output (Pin 2)
Internal Terminations Integrated 120 Ω resistors for CAN1, CAN2, and CAN3 (activated via pin jumpers)
RPM Signal Output 1 ms pulse width, 30 V peak (proportional to engine RPM)
Connector Assembly 16-Pin Molex Mini-Fit Jr. receptacle and crimp terminals included
Enclosure Dimensions 110 mm × 56 mm × 26 mm (with mounting flange)
Unit Weight 80 g
Operating Temperature Range -20°C to +70°C (maximum ambient limit 70°C)
Cockpit Display Compatibility Flybox Omnia, Vigilus EIS, EngiMaster EIS, Eclipse NG, and third-party CAN displays
Target Aircraft Ultralights, Light Sport (LSA), Microlights, and Homebuilt Experimental aircraft
Installation Advisory: Install the CAN-BRIDGE in a dry, ventilated cockpit or avionics bay area away from heat sources (do not exceed +70°C; unit is not waterproof). Always use twisted-pair shielded aviation wire for all CAN-bus connections and ground the shields properly. Verify that line termination rules are observed: if the CAN-BRIDGE is positioned at the physical end of a bus branch, activate its internal 120Ω resistor by jumpering the respective termination pins (Pin 3–11 for CAN1, Pin 5–13 for CAN2, Pin 7–15 for CAN3).
📄
User & Installation Manual
Download PDF ↗
