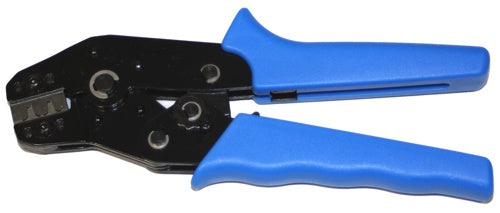

Professional Crimping Tool for Molex Micro-Fit 3.0 (ACCPINZA)
This item is currently out of stock but is available to backorder. Placing your order reserves your position in our next incoming shipment.
Flybox Professional Crimping Tool for Molex Micro-Fit (ACCPINZA)
The Flybox ACCPINZA (Cod. 603000) is a professional ratcheting crimp tool engineered specifically for terminating Molex Micro-Fit 3.0 mm contacts used across the Flybox Omnia, Vigilus, and EngiMaster avionics series. Built with calibrated precision double-crimp dies and a full-cycle ratcheting action, it ensures OEM-standard mechanical pull strength and electrical conductivity across AWG 20 to AWG 30 aircraft wiring.
Watch Flybox demonstrate step-by-step wire preparation, terminal alignment, ratchet cycling, and pressure wheel adjustment:
Watch Official Tutorial Video →Operational Capabilities & Termination Precision
Workshop-grade terminal crimping engineered to eliminate avionics electrical failures:
Simultaneous Double-Crimp
Features stepped die profiles that compress the conductor strands for gas-tight electrical contact while simultaneously forming the rear insulation wings for mechanical strain relief in one motion.
Full-Cycle Ratchet Control
The internal ratchet mechanism will not release until the jaws reach full calibrated closure. Completely eliminates loose, under-crimped pins that cause intermittent in-flight telemetry dropouts.
Preserves Contact Lances
Machined specifically for the miniature geometry of Molex Micro-Fit terminals. Prevents crushing or bending the delicate retention barbs, ensuring terminals click securely into connector housings.
Quick-Release Safety Lever
Equipped with an emergency release trigger that instantly opens the crimping jaws if a terminal is inserted incorrectly, preventing damaged pins or jammed tools during harness assembly.
Technical Specifications
| Manufacturer Part Number | ACCPINZA (Flybox Cod. 603000) |
| Tool Type | Professional Calibrated Ratcheting Crimper |
| Connector Compatibility | Molex Micro-Fit 3.0 mm pitch male pins and female sockets |
| Wire Capacity Range | AWG 20 – AWG 30 (0.05 mm² to 0.52 mm² aircraft-grade wire) |
| Die Set Material | Precision CNC EDM machined hardened carbon alloy steel |
| Crimp Action | Simultaneous conductor core and insulation jacket compression |
| Safety Features | Quick-release manual ratchet override lever |
| Avionics Compatibility | Flybox Omnia57, Omnia80, Vigilus EIS, and EngiMaster loom assemblies |
| Official Video Tutorial | Watch on YouTube (Flybox Official) |
| Target Aircraft | Ultralights, Light Sport (LSA), Microlights, and Homebuilt Experimental aircraft |
