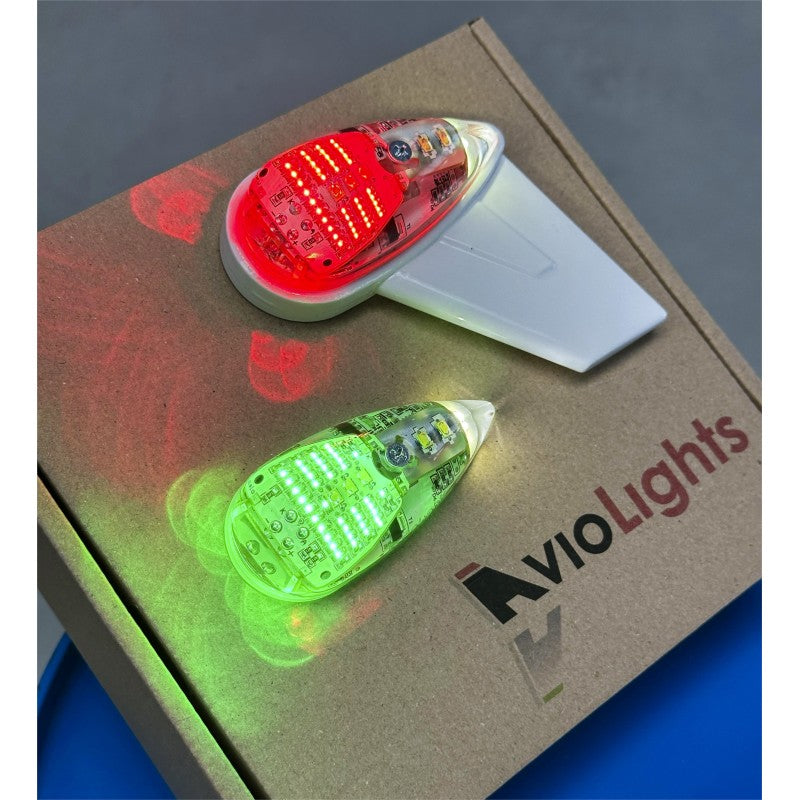

WingWatch 360
This item is currently out of stock but is available to backorder. Placing your order reserves your position in our next incoming shipment from the manufacturer. We will keep you notified with delivery updates when able.
All-In-One Wingtip Lighting & Electronic Conspicuity System
The WingWatch 360 combines a high-performance 3-in-1 lighting suite (navigation, rear position, and synchronised strobe) with a fully integrated electronic conspicuity transceiver. Engineered directly into the wingtip capsule, it delivers true two-way situational awareness—broadcasting your position via ADS-L while receiving ADS-B, FLARM, and Mode S signals—with zero remote boxes, external drivers, or complex airframe modifications.
What Sets WingWatch 360 Apart
It doesn't only help you spot conflicting traffic—it makes you visible to everyone else. Delivering true electronic conspicuity in line with modern UK CAA and international aviation safety recommendations:
- Transmit & Receive (ADS-L + ADS-B / FLARM / Mode S): Broadcasts position data via ADS-L while actively intercepting ADS-B, FLARM, and Mode S traffic around you.
- Direct Glass-Cockpit Integration: Streams traffic data seamlessly over Wi-Fi or Bluetooth to Garmin G3X, Dynon SkyView, and Kanardia Nesis.
- No Dedicated Avionics Box Needed: Manage setup directly from your existing tablet or smartphone via an intuitive built-in web app. No laptop software required.
- One-Screw Wingtip Mounting: Connects directly to the aircraft electrical bus and mounts with just one screw—fit it once, forget it, and fly protected.
Integrated Strobe Controller
The synchronized flash driver is built directly into each lamp capsule. Faster installation, clean wiring, and no need to sacrifice sub-panel space for remote controller boxes.
Multi Protection
Monolithic encapsulation in UV-resistant resin renders the lamp totally impervious to water ingress, extreme vibration, and dust, with integrated reverse polarity protection.
High Brightness CREE Output
High-grade optics with a dedicated reflection system deliver an intense 2,000-lumen strobe flash per lamp alongside a 450-lumen navigation beam, exceeding statutory brightness targets.
Lighting Technical Specifications
| Lighting Functions | Navigation (Red/Green) + Rear Position (White) + Synchronised Strobe (White) |
| Operating Voltage Range | 12 V – 15 V DC |
| Weight (Set of 2 Lamps) | 240 g |
| Current Draw – Navigation | 0.7 A (pair) • 6.0 W input power |
| Current Draw – Strobe (Peak) | 3.4 A in peak (pair) • 46.5 W peak power |
| Luminosity Output | 450 lm (nav/lamp) • 2,000 lm (strobe/lamp) |
| Navigation Light Angle | 110° |
| Operating Temperature Range | -35°C to +60°C |
| Encapsulation & Sealing | Monolith of UV-resistant epoxy resin (dust, water & vibration proof) |
| Circuit Protection | Reverse polarity protected |
| Mounting | Fast 1-screw wingtip installation |
Traffic & Transceiver Specifications
| ADS-L / OGN Transceiver | 868 MHz (Transmit & Receive) |
| ADS-L Transmit Power | 14 dBm |
| ADS-L Receiving Sensitivity | -134 dBm max |
| ADS-B Receiver Frequency | 1090 MHz |
| ADS-B Receiving Sensitivity | -87 dBm max |
| FLARM Module | Integrated FLARM receiver |
| Wireless Protocols | Wi-Fi 2.4 GHz • Bluetooth 2.4 GHz |
| Supported EFIS Systems | Garmin G3X, Dynon SkyView, Kanardia Nesis |
| Warranty | 2 Years standard (+1 Year optional extension) |
