Fly Henry

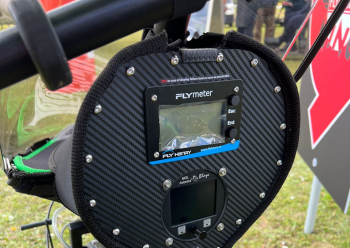

Fly Meter

Lorem ipsum dolor sit amet, conetur adiping elit Lorem ipsum dolor sit amet, cons ectetur adiscing elit Lorem ipsum dolor sit altmet, conse ctetur adipiscing elit aloma lomiur off silder tolos. Lorem ipsum dolor sitlor amet, conetur adiping elit Lorem ipsum dolor sit amet, consectetur adipiscing elit.

– Calculation of flight time based on fuel level

– Reset of all timers

– Option to set initial time of the main timer

– Option to lock reset and set the main timer with a 4-digit code

– Fuel flow alarm (fuel leakage)

– RPM alarm

– Oil and fuel pressure alarm – min. and max.

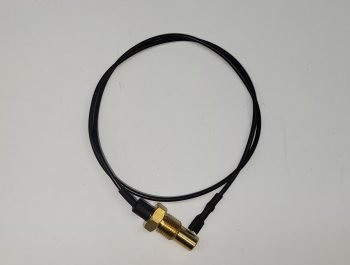

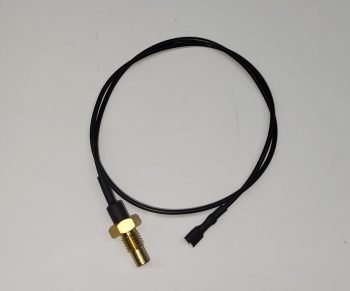

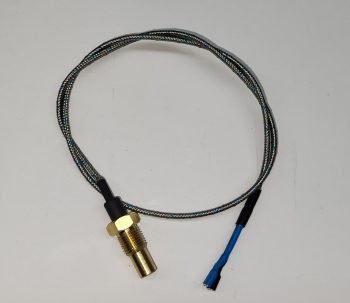

– Oil and water sensor – 2x preset, 1x programmable sensor

– New oil and fuel pressure sensor – 2 designs

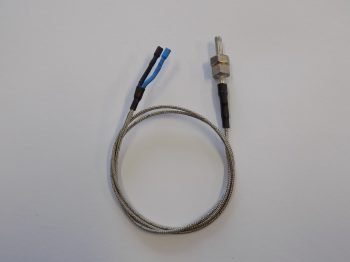

– 4x temperature 0-1000°C – CHT or EGT switchable display between °C and °F

– 1x temperature 0-125°C – oil, water, etc switchable between °C and °F

– 1x oil or fuel pressure measurement

– RPM meter

– 4x engine hours

– Service interval setting

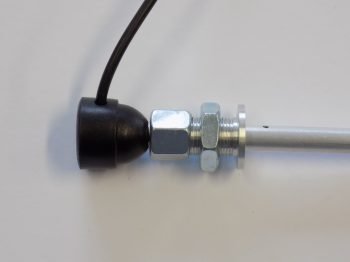

– Fuel gauge – fuel level in the tank

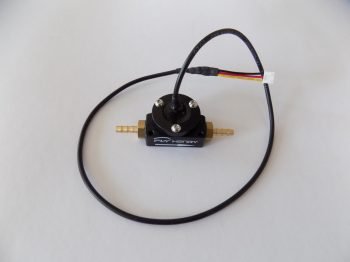

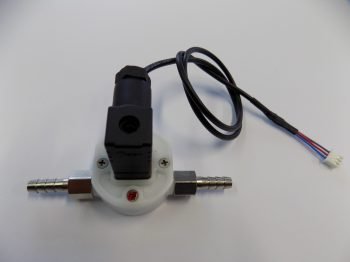

– Fuel flow meter – actual and average consumption, total fuel consumed

– Calculation of flight time based on fuel quantity

– Measurement of on-board voltage

– Alarms – temperature, oil or fuel pressure min. and max., fuel level ,

  on-board voltage min. and max., max RPM, max fuel flow

– Display contrast and backlight adjustment

Input Voltage: 7-20V

Visualization module

Dimensions of the front panel: 98 x 64 mm

Dimensions of the aperture in the panel: 93 x 59 mm

Weight: 150g

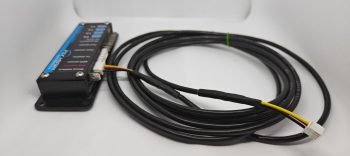

Measurement module

Base dimensions: 124 x 40 x 20 mm

Weight: 100g

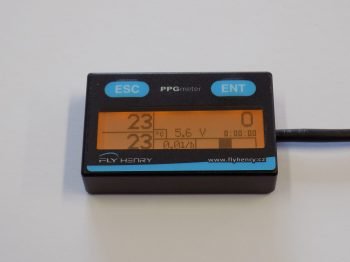

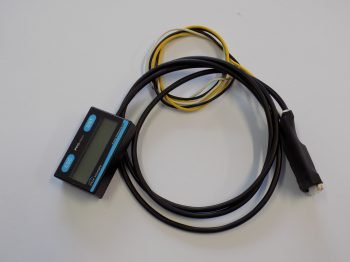

PPG Meter

Lorem ipsum dolor sit amet, conetur adiping elit Lorem ipsum dolor sit amet, cons ectetur adiscing elit Lorem ipsum dolor sit altmet, conse ctetur adipiscing elit aloma lomiur off silder tolos. Lorem ipsum dolor sitlor amet, conetur adiping elit Lorem ipsum dolor sit amet, consectetur adipiscing elit.

  Flight time calculation according to fuel level

– All timers reset

– Setting option initial time in total timer

– Total timer code block possibility

– Fuel flow alarm (fuel leak)

– 2x temperature measurement in range 0-1000°C – CHT or EGT. Possibility to view the temperature in degrees of Celsius or Fahrenheit

– Revolution meter

– 4x engine hours

– Fuel gauge – measures level of fuel in the tank – liters or gallons

– Fuel consumption- immediate and average consumption, amount of consumed fuel – liters or gallons

– Measurement of the onboard voltage

– Alarms: overheating, oil and fuel under pressure, fuel level, onboard voltage drop, temperature, RPM, minimum and maximum voltage, voltage of battery, fuel flow

– Maximum temperature, revolutions, and fuel consumption

– Start monitoring system-securing engine start

– Regulation of brightness and contrast of the display

Input Voltage: 5-20 V

Dimensions of the visualization module: 60 x 37 x 15 mm

Dimensions of the measurement module: 60 x 28 x 11 mm

Weight: 100 g

Dimensions of the battery box: 63 x 48 x 15 mm

Weight: 70 g

Length of the data cable between the visualization and measurement module: 130 cm
