Backup Battery System
This item is currently out of stock but is available to backorder. Placing your order reserves your position in our next incoming shipment from the manufacturer. We will keep you notified with delivery updates when able.

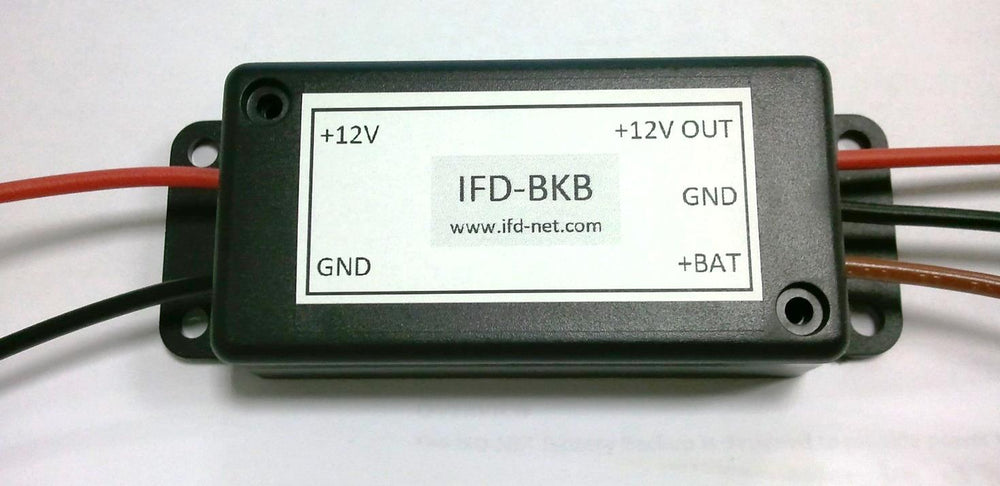

IFD-NET Battery Backup Module (IFD-BKB)
Designed specifically for Ultralight, Light Sport (LSA), and Experimental aircraft, the IFD-BKB provides uninterrupted emergency power to your IFD-NET and companion MAV avionics in the event of primary electrical bus or alternator failure. Featuring instantaneous automatic switching and built-in battery float charging, it guarantees your critical flight instruments stay online without interruption.
Key Advantages & Power Architecture
Engineered to keep critical navigation and primary flight displays alive when cockpit power fails:
Instant Power Transfer
Switches instantly to backup battery power the microsecond primary bus power drops. Eliminates instrument power cycling, blackouts, or in-flight AHRS gyro re-alignment.
Automatic Float Charging
As long as main alternator/aircraft power is available, the IFD-BKB automatically maintains the secondary battery at full charge, ensuring full reserve capacity on every flight.
Full 1-Hour Autonomy
When paired with an affordable 12 V / 2.3 Ah lead battery, the unit supplies an entire six-pack panel layout (six 80 mm IFD-NET units + avionic module) for roughly 60 minutes.
Dual Voltage Flexibility
Directly compatible with standard 12 V/14 V airframe buses, and operates on 24 V/28 V electrical systems simply by wiring two 12 V batteries in series (rated up to 30 V).
Wiring & Connection Configuration
The IFD-BKB comes pre-wired with 20 cm aeronautical-grade 1.5 mm² wiring. Connect into your cockpit electrical circuit as follows:
- +12V IN (Red Wire): Connects to the unregulated aircraft alternator/battery charging bus via a dedicated 5 A fuse or breaker.
- GND (Black Wires): Connect to the central airframe ground chassis and instrument ground bus.
- +12V OUT / +24V OUT (Red Wire): Feeds the positive power terminal of your IFD-NET / IFD-microNET instruments via your cockpit avionics master switch.
- +BAT (Brown Wire): Connects to the positive terminal of your auxiliary lead backup battery via an inline 5 A fuse.
Technical Specifications
| Module Dimensions (L × W × H) | 110 mm × 40 mm × 20 mm |
| Nominal Input Voltage | 12 V – 15 V DC (supports up to 30 V DC for 24 V/28 V systems) |
| Maximum Continuous Output Current | 2.0 Amperes |
| Operating Temperature Range | -20°C to +70°C |
| Integrated Wiring Specification | Aeronautical grade, 20 cm length, 1.5 mm² cross-section |
| Recommended Circuit Protection | 5 A fuse on Main +12V IN line • 5 A fuse on +BAT backup lead |
| Supported Battery Chemistry | Sealed Lead-Acid (SLA / AGM) batteries only (e.g. Yuasa 12V 2.3Ah) |
| Avionics Compatibility | IFD-NET EVO series, IFD-microNET series, and companion MAV instruments |
- Never connect a fully discharged battery: The IFD-BKB is a float maintainer, not a bench recovery charger. Always fully charge the secondary battery prior to installation.
- Connection order: Complete all panel wiring first, and leave the connection to the battery positive terminal (+BAT) as the final step to avoid short-circuit risks during assembly.
- Engine cranking: Isolate the avionics bus switch during engine start to protect instruments from starter-motor electrical spikes.
