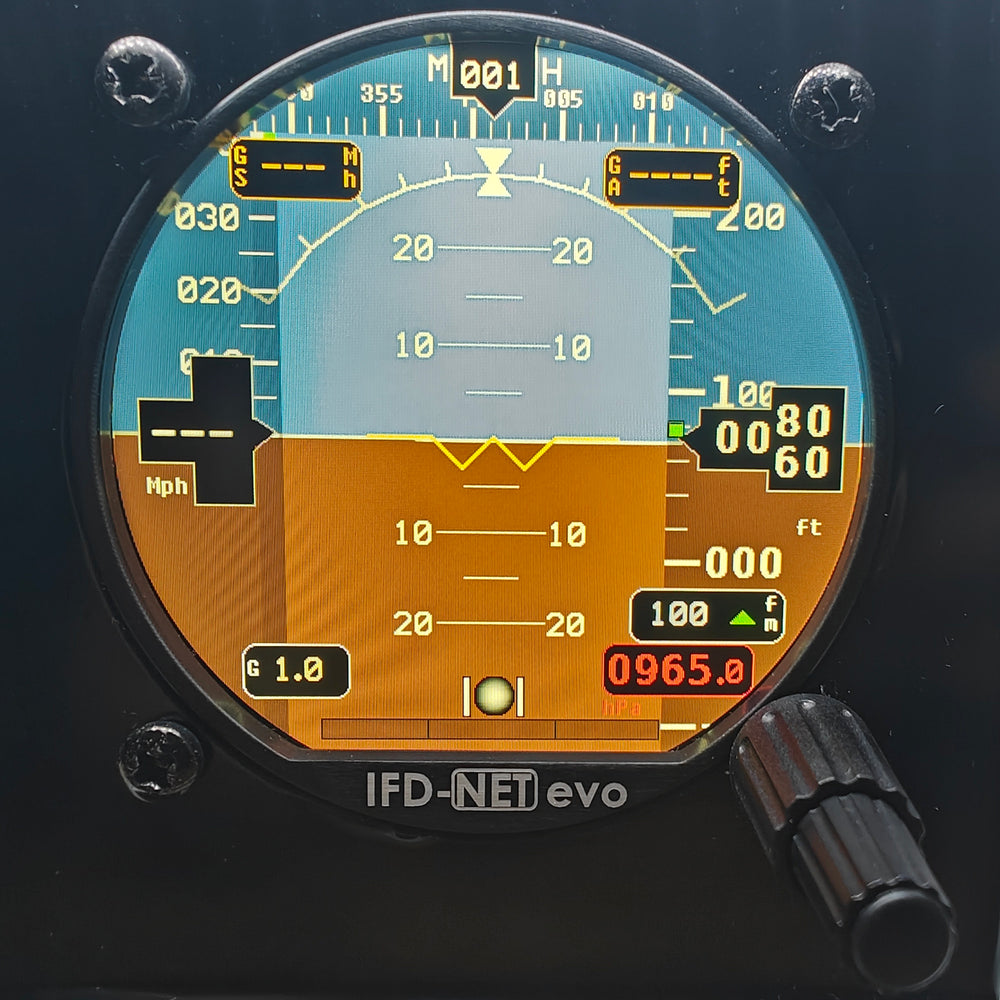

IFD EVO EFIS PFD
This item is currently out of stock but is available to backorder. Placing your order reserves your position in our next incoming shipment from the manufacturer. We will keep you notified with delivery updates when able.
IFD-NET EVO EFIS BASE (80 mm)
Designed specifically for Ultralight, Light Sport (LSA), and Experimental aircraft, the IFD-NET EVO EFIS BASE delivers complete Primary Flight Display telemetry inside a standard 80 mm (3⅛″) panel hole. Powered by internal solid-state AHRS sensors, embedded pneumatic pressure transducers, and an ultra-bright display reaching up to 1,200 cd/m², it provides rock-solid attitude, speed, altitude, and coordination data in direct sunlight with low power consumption.
Primary Flight Display Architecture
A complete avionics suite presented on an ultra-responsive, high-resolution flight screen:
Attitude & Artificial Horizon
Fast-refresh attitude indicator with pitch rungs every 5° and roll bank angle indices at 10°, 20°, 30°, 45°, and 60°. Includes three selectable filter damping rates (FST, MED, SLO) to eliminate turbulence image jitter.
Airspeed Tape & V-Speeds
Continuous drum airspeed indicator with trend vector. User-configurable colour bands for Vs0, Vs1, Vfe, Vno, and Vne, plus dedicated on-screen labels for critical V-speeds: Vx, Vy, Vr, Ve, Va, and Vg.
Altitude & Dual Baro Setting
Drum-counter altimeter with altitude trend vector and automatic Flight Level (FLxxx) transition above 10,000 ft. Outer knob adjusts whole pressure values; inner knob fine-tunes decimal values (hPa or inHg).
Direction, Coordination & G-Load
Overhead heading tape (Magnetic Heading, True Heading, or GPS Track), digital slip ball with adjustable mass damping, turn rate trend bar (standard 3°/sec indicator), live G-meter with peak memory, and wind vector estimation.
Selectable Screen Density Modes
Configure your cockpit scan directly from the setup menu to match your flight profile:
Full PFD (FUL)
Complete glass cockpit scan. Displays artificial horizon, indicated airspeed tape, barometric altitude, GPS altitude, vertical speed, turn coordinator, slip ball, reference pressure, and live G-meter.
Clear Mode (CLR)
De-clutters secondary telemetry during busy terminal or circuit operations by hiding the G-meter, turn coordinator bar, ground speed, and vertical speed for a cleaner, high-focus scan.
Attitude Backup (AH)
A pure artificial horizon format presenting only the attitude bank indicator, compass heading, and the coordination slip ball—ideal as an uncluttered emergency backup instrument.
Integrated Sensors & Calibration
- Zero External Modules: Internal AHRS gyros, accelerometers, 3-axis magnetometer, and baro sensors.
- Pressure Offsets: Onboard IAS TRIM and ALT TRIM allow fine-tuning down to 0.1 mbar directly on the panel.
- AOA-Ready Inlets: Equipped with a third 1/8″ NPT port ready for differential-pressure Angle of Attack sensors.
Ergonomics & 80 mm Panel Fit
- Dual Concentric Dial: Large crown for coarse adjustments; inner crown for fine precision tuning.
- Standard 80 mm Cutout: Direct installation into 3⅛″ panel holes with three included 4MA screws.
- Memory Expansion: Built-in SD/MMC card slot for quick application firmware and system updates.
Technical Specifications
| Panel Cutout Size | Standard 80 mm (3⅛″ aeronautical cutout) |
| Dimensions (W × H × D) | 85.4 mm × 89.0 mm × 67.5 mm (chassis depth 67.38 mm) |
| Cockpit Controls | Dual concentric rotary knobs with integrated push-switch |
| Display Brightness | Sunlight-readable colour screen up to 1,200 cd/m² (special order up to 2,000 cd/m²) |
| Operating Voltage Range | 10 V – 28 V DC (max 0.8 A, transient protected; 2A breaker recommended) |
| Power Consumption | Down to 3.5 W (approx. 300 mA @ 12 V DC) |
| Operating Temperature Range | -10°C to +70°C (up to 90% RH non-condensing) |
| Pneumatic Connections | 3× 1/8″ NPT female brass ports (Pitot, Static, and Angle of Attack/AOA) |
| GPS Antenna Connection | SMA female connector (supports active or passive GPS antennas) |
| Electrical Interface | Standard 9-pin Sub-D female connector (power, serial bus, OAT sensor) |
| Memory Slot | Rear SD/MMC slot for firmware and configuration updates |
| Configurable Measurement Units | Altitude (m / ft), Speed (kts / km/h / mph), VSI (m/s or ft/min), Pressure (hPa / inHg) |
| Included Accessories | 3× 4MA × 10 mm black panel screws |
