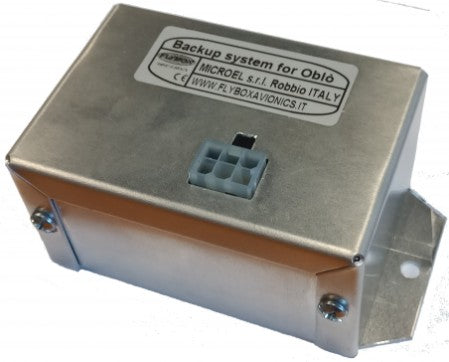

Backup Battery System for Oblò & Oblò (DBMIOBLOBACKUP300)
This item is currently out of stock but is available to backorder. Placing your order reserves your position in our next incoming shipment.
Flybox Backup Battery System for Oblò / Oblò2 (DBMIOBLOBACKUP300)
The Flybox DBMIOBLOBACKUP300 (Oblò Backup System 2.0 / Cod. 810020) is a dedicated uninterruptible power supply (UPS) engineered specifically for the Flybox Oblò and Oblò2 Primary Flight Display (PFD). Utilizing an aviation-safe internal Nickel-Metal Hydride (Ni-MH) battery pack, it eliminates starter-cranking voltage dropouts and provides over 3 hours of continuous emergency flight autonomy (up to 6 hours for a single Oblò) if primary aircraft bus power is lost.
Operational Capabilities & PFD Reliability
Essential bus voltage buffering and autonomous power redundancy for your glass cockpit:
Safer Ni-MH Technology
Constructed using an internal Nickel-Metal Hydride battery pack. Ni-MH cells are inherently safer than lithium chemistries in cockpit environments, eliminating thermal runaway risks and hazardous outgassing.
Over 3 Hours Autonomy
Supplies continuous power for more than 3 hours at maximum rated current (0.45 A) and up to 6 hours when driving a single Flybox Oblò display, ensuring ample time to reach a diversion airfield.
Zero-Drop Cranking Buffer
Buffers against deep bus voltage drops caused by starter motor cranking. Prevents the Oblò from power-cycling during engine startup, preserving your AHRS attitude alignment and gyro calibration.
Smart Status Annunciation
Includes a remote warning LED output that flashes coded diagnostic sequences to notify pilots of battery condition, charge completion, or thermal lockout outside the 0°C to +45°C charging range.
Technical Specifications
| Manufacturer Part Numbers | DBMIOBLOBACKUP300 (Oblò Backup System 2.0 / Cod. 810020) |
| Product Function | Uninterruptible Power Supply (UPS) & Engine Starting Buffer |
| Compatible Flight Instruments | Flybox Oblò, Flybox Oblò2, and instruments up to 0.45 A draw |
| Internal Battery Type | Integrated Nickel-Metal Hydride (Ni-MH) battery pack (2.0 Ah) |
| Emergency Autonomy | >3 hours @ 0.45 A maximum load • Approx. 6 hours with 1x Oblò (0.26 A) |
| Input Supply Voltage Range | 10 V to 16 V DC (20 V absolute maximum limit) |
| Max Output Current Limit | 0.45 A continuous |
| Output Voltage in Backup Mode | 10 V to 12 V DC |
| Enclosure Dimensions | 105.0 mm × 57.2 mm × 43.0 mm (with mounting flanges) |
| Unit Weight | 220 g (complete assembly) |
| Connector Standard | 6-Pole Molex Mini-Fit Jr. receptacle and crimp terminals included |
| Operating Temperature Range | -10°C to +60°C (Battery charging window: 0°C to +45°C) |
| Target Aircraft | Ultralights, Light Sport (LSA), Microlights, and Homebuilt Experimental aircraft |
