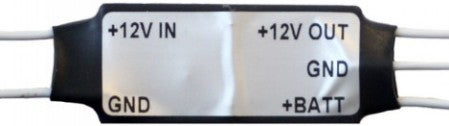

Battery Backup Module for Eclipse (DBMIBB)
This item is currently out of stock but is available to backorder. Placing your order reserves your position in our next incoming shipment.
Flybox Battery Backup for Eclipse (DBMIBB / Cod. 703020)
The Flybox DBMIBB (Cod. 703020) is an uninterruptible power supply (UPS) controller and starting buffer engineered for the Flybox Eclipse NG and cockpit flight instruments on Ultralight, Light Sport (LSA), and Experimental aircraft. It maintains uninterrupted electrical power to connected displays during starter motor ignition cranking and delivers approximately 1 hour of emergency flight runtime if the main aircraft electrical bus fails.
Operational Capabilities & In-Flight Electrical Security
Essential bus voltage buffering and autonomous power redundancy for glass cockpits:
Zero-Drop Cranking Buffer
Buffers against deep starter motor voltage drops during engine cranking. Prevents glass cockpit reboot cycles, preserving vital AHRS attitude alignment and GPS positioning at engine start.
1 Hour Emergency Autonomy
Paired with a 12 V 2 Ah rechargeable battery, it provides approximately 1 hour of emergency runtime for one Eclipse display (or 30 minutes with two Eclipse screens) in the event of an alternator failure.
Automatic Trickle Charging
Automatically recharges the backup battery with a maintenance current whenever main aircraft bus voltage is present, ensuring emergency reserves are continuously topped up without manual intervention.
Ultra-Compact Footprint
Measuring only 70 × 25 × 8 mm, this miniature module fits effortlessly behind the instrument panel or in tight sub-assemblies, pre-wired with 20 cm aviation cables for quick hookup.
Technical Specifications
| Manufacturer Part Numbers | DBMIBB / Cod. 703020 |
| Product Function | Glass Cockpit Uninterruptible Power Supply (UPS) & Cranking Buffer |
| Required Backup Battery | 12 V 2 Ah rechargeable lead-acid battery (Flybox Cod. 703030, available separately) |
| Autonomy on Backup Battery | ~1 hour with 1x Eclipse connected • ~30 minutes with 2x Eclipse displays |
| Supply Voltage Input Range | 12 V to 15 V DC |
| Max Load Current to Instruments | 3.0 A continuous (do not exceed 3 A total load on connected devices) |
| Quiescent Standby Current Draw | 110 μA (device only) |
| Dimensions | 70 mm × 25 mm × 8 mm |
| Wiring Leads | 20 cm pre-attached aeronautic-grade multi-core wiring leads |
| Operating Temperature Range | -20°C to +70°C |
| Target Aircraft | Ultralights, Light Sport (LSA), Microlights, and Homebuilt Experimental aircraft |
