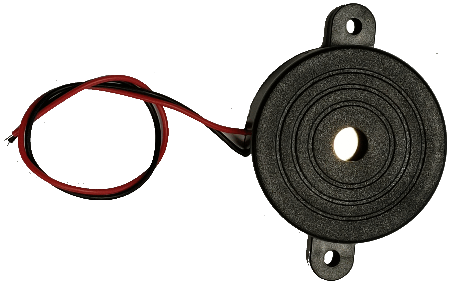

Cockpit Alarm Buzzer for Omnia Series (DBMIBZVL)
This item is currently out of stock but is available to backorder. Placing your order reserves your position in our next incoming shipment.
Flybox Cockpit Alarm Buzzer for Omnia Series (DBMIBZVL)
The Flybox DBMIBZVL is a panel-mounted acoustic warning buzzer and visual alarm indicator engineered for the Flybox Omnia instrument series (57 mm and 80 mm). Connecting directly to the open-collector master alarm line of your Omnia gauges, it provides an unmistakable, high-decibel audible tone paired with bright visual annunciation—ensuring vital engine limits and flight cautions are instantly noticed during high-workload flying.
Operational Capabilities & Flight Deck Safety
Multi-sensory warning protection designed to eliminate missed cockpit alerts:
Dual Audio & Visual Warning
Delivers both a high-decibel acoustic alert and a bright indicator light simultaneously. Captures pilot attention instantly, even when looking outside the cockpit during approach or maneuvering.
Direct Omnia Open-Collector Link
Engineered specifically for the NPN open-collector alarm circuit found on Pin 13 of standard Omnia wiring harnesses. Requires no external driver relays or complex signal converters.
Multi-Instrument Summing
Can be linked across multiple Omnia instruments using standard isolation diodes—creating a centralized master caution sounder for RPM, fuel pressure, oil limits, and altitude warnings.
Simple Panel Mounting
Mounts neatly through a standard panel hole with a threaded bezel and retaining ring. Requires minimal depth behind the dashboard, fitting easily into tight instrument layouts.
Technical Specifications
| Manufacturer Part Number | DBMIBZVL |
| Product Function | Acoustic Buzzer • Visual Alarm Annunciator |
| Compatible Flight Instruments | Flybox Omnia Family (All 57 mm and 80 mm gauges) |
| Operating Voltage Range | 10 V – 30 V DC (Compatible with 12V and 24V aircraft electrical systems) |
| Alarm Trigger Input | Active-low NPN open-collector (Pin 13 on 22-pole harness / Pin 14 on 24-pole harness) |
| Sound Output Level | High-output audible beeper (~85–90 dB @ 1 m) |
| Current Consumption | Nominal (<40 mA during active alarm state) |
| Operating Temperature Range | -20°C to +70°C |
| Target Aircraft | Ultralights, Light Sport (LSA), Microlights, and Homebuilt Experimental aircraft |
