Rotax 912/912is/914/915is wiring loom for Vigilus EMS
This item is currently out of stock but is available to backorder. Placing your order reserves your position in our next incoming shipment from the manufacturer. We will keep you notified with delivery updates when able.
Flybox Vigilus Engine Wiring Looms

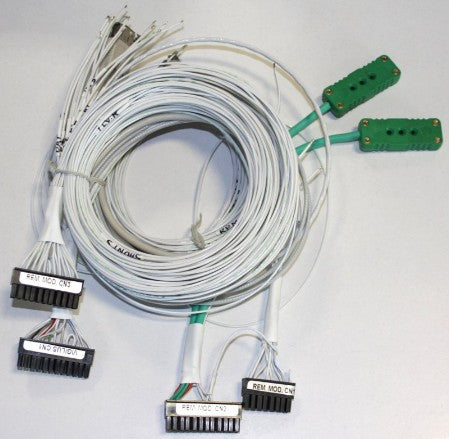

Eliminate wiring errors, ground-loop interference, and dozens of fabrication hours with factory pre-assembled engine harnesses for the Flybox Vigilus Engine Information System. Built using aviation-grade high-temperature cabling and noise-screened twisted signal lines, these harnesses provide direct plug-and-play reliability between your engine compartment and the firewall-mounted Vigilus Remote Module.
Select Your Engine Configuration
Select the correct harness variant above to match your aircraft engine model:
| Harness Variant | Engine Application | Primary Capabilities |
|---|---|---|
| Rotax 912 / 914 Loom | Rotax 912 UL / ULS / ULSFR & 914 Turbo | Pre-wired for 4× EGT, 2× CHT (Cyl 2 & 3), RPM pick-up, Oil P, Oil T, Fuel P, Fuel Flow, CAT, OAT, and 3× Fuel Levels. |
| Rotax 912iS / 915iS Loom | Rotax 912iS, 912iSc Sport & 915iS / 916iS | Direct dual CAN-bus to ECU Lane A & B for RPM, Water Temp, Manifold Temp, Throttle Position, and digital fuel flow, plus airframe fuel/electrical leads. |
| Universal Custom Loom | Jabiru, Continental, Lycoming, EPA Power, custom builds | Pre-pinned locking connectors at the Remote Module with extended unterminated flying leads for custom routing and length trimming. |
Rotax 912 / 914 Harness
Matches the default factory software profile of the Vigilus. CHT channels map directly to Cylinders 2 & 3, and shielded pairs isolate the sensitive RPM trigger line from ignition pulse noise.
- 4× K-type EGT branches
- 2× Factory CHT sensor connectors
- Pre-wired for Rotax 956413 Oil Pressure & Oil Temp
- Fuel pressure, flow, and airbox temperature leads
Rotax 912iS / 915iS Harness
Connects directly into the Rotax CAN bus to stream digital engine telemetry. Enables the Vigilus [A B] ECU status monitor and captures exact injection-calculated fuel consumption without mechanical inline flow meters.
- Dual ECU Lane A & Lane B CAN lines
- Streams WT, MT, RPM, and Throttle Position
- Pre-wired high-pressure fuel rail sensor branch
- 3× Tank level senders & ammeter current leads
Universal Custom Harness
The preferred choice for non-Rotax installations or modified engine bays. Provides full-length aviation-grade wire runs pre-pinned into the Vigilus Remote Module connectors, leaving the engine ends ready for bespoke termination.
- Full complement of sensor and power channels
- Extended wire lengths for custom routing paths
- Guarantees factory pinout at the remote module
- Ideal for Lycoming, Continental, or Jabiru engines
Aviation-Grade Manufacturing Standards
- Flame-Retardant Wire Insulation: Resistant to engine bay fuels, oils, solvents, and heat cycles (-20°C to +105°C continuous).
- Complete Screening: Critical signal lines (RPM, CAN-Bus, and low-voltage sensor lines) are wrapped in braided screening with ground drains to ensure clean readings.
- Clear Identification: Every single wire breakout is colour-coded and identified with printed heat-shrink tubing for straightforward installation and maintenance.
Technical Specifications
| Avionics Compatibility | Flybox Vigilus Remote Engine Module (all versions) |
| Available Engine Variants | Rotax 912/914 • Rotax 912iS/915iS • Universal Custom |
| Conductor Quality | Aviation-grade, high-temperature, flame-retardant specification |
| Operating Temperature Rating | -20°C to +105°C continuous engine bay rating |
| Noise Shielding | Twisted shielded pairs with drain wires for CAN-bus, RPM, and sensors |
| Remote Module Connection | Pre-pinned multi-pin locking connectors matching Vigilus module receptacles |
