IFD-MicroNET EFIS Base
This item is currently out of stock but is available to backorder. Placing your order reserves your position in our next incoming shipment from the manufacturer. We will keep you notified with delivery updates when able.

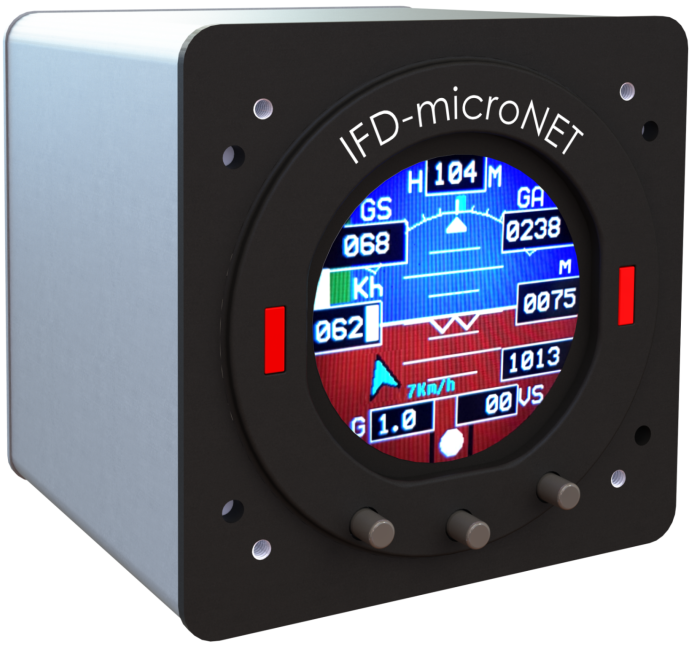

IFD-microNET EFIS (57 mm)
Engineered for Ultralight, Kit, and Experimental aircraft, the IFD-microNET EFIS condenses a full Primary Flight Display, solid-state AHRS, and GPS-ADF waypoint navigation into a standard 57 mm (2¼″) panel cutout. Its high-rate processing engine over-samples all inertial and pneumatic inputs, resolving attitude, bank, and heading with exceptional stability through both standard flight and aerobatics.
Model Selection: Base vs. PLUS
The IFD-microNET EFIS is available in two internal hardware configurations. Select the model that fits your cockpit installation:
| Flight Display Capability | EFIS BASE | EFIS PLUS |
|---|---|---|
| Primary Flight Display (PFD) | ✓ | ✓ |
| Artificial Horizon & Bank Arc | ✓ | ✓ |
| Altitude (Barometric & GPS) + QNH/QFE | ✓ | ✓ |
| Airspeed (IAS Ribbon) & Ground Speed (GS) | ✓ | ✓ |
| Vertical Speed, Slip Indicator & Turn Coordinator | ✓ | ✓ |
| G-Meter with Peak Memory | ✓ | ✓ |
| 7 Switchable Auxiliary Environment Screens | — | ✓ |
| GOTO-ADF Navigation (8,000+ POI Database) | — | ✓ |
| Dedicated Gyro Compass Page | — | ✓ |
| Autopilot Serial Output Interface | — | ✓ |
Primary Flight Telemetry
- Dynamic Artificial Horizon: High-refresh rate attitude indicator with pitch ladders and roll bank angles.
- Dual Altitude Display: Shows both barometric reference altitude and GPS altitude simultaneously.
- Inertial Coordination: Integrated turn coordinator, 3D compass heading, and digital slip ball with adjustable mass damping.
Navigation & Hardware Fit
- 8,000+ POI Database: Built-in database covering airfields, airports, and IFR/VFR waypoints across Europe.
- Standard 57 mm Installation: Fits standard 2¼″ aeronautical holes with zero airframe rework.
- Ultra-Low Consumption: Minimal 2.3 W electrical load ensures dependable backup capability.
Technical Specifications
| Panel Mounting Standard | Standard 57 mm (2¼″ aeronautical cutout) |
| Dimensions (W × H × D) | 64 mm × 64 mm × 75 mm (74.6 mm body depth) |
| Display Luminosity | Sunlight-readable colour screen up to 1,000 cd/m² |
| Operating Voltage Range | 10 V – 30 V DC (with internal filter & transient protection) |
| Power Consumption | 2.3 W typical (approx. 200 mA @ 12 V DC) |
| Operating Temperature Range | -20°C to +80°C (up to 90% RH non-condensing) |
| Pneumatic Ports | 2× 1/8″ NPT female ports (Pitot & Static) |
| GPS Antenna Connection | SMA female connector (supports passive GPS antennas) |
| Electrical Connection | 9-pin Sub-D female connector (power & BUS) |
| Internal Navigation Database | Over 8,000 European airfields, airports, and waypoints |
| Measurement Units | Fully adjustable in setup menu (Metric & Imperial) |
